Authors: Mohammad Alsukour; Yanal S. Faouri; Hamzeh A. AbuHamad

Conference Information:

Name: 2024 6th Global Power, Energy and Communication Conference (GPECOM)

Location: Budapest, Hungary​

DOI: 10.1109/GPECOM61896.2024.10582685​

Abstract:

​A dual-band with a four-element MIMO antenna for future 5G mobile applications is presented. The single-element antenna consists of several microstrip lines arranged in a way to cover 5G and Wi-Fi 6 bands. The results demonstrate that the intended design has a low mutual coupling of −18 dB and −28 dB for the two bands respectively and has an almost omnidirectional pattern with the maximum gain achieved is 6.63 dB. The proposed antenna has an efficiency (61% – 76%), envelope correlation coefficient is much less than (EEC < 0.015), diversity gain (DG > 9.95 dB), mean effective gain (MEG < 3dB), and finally, channel capacity loss (CCL < 0.10 bit/s/Hz). A simulation and analysis have been done using ANSYS HFSS software on a substrate of FR4 with an overall dimension of 150 x 75 x 0.8 mm 3. The presented antenna is compared with the existing literature. The suggested antenna will be favorable for coming 5G mobile applications.

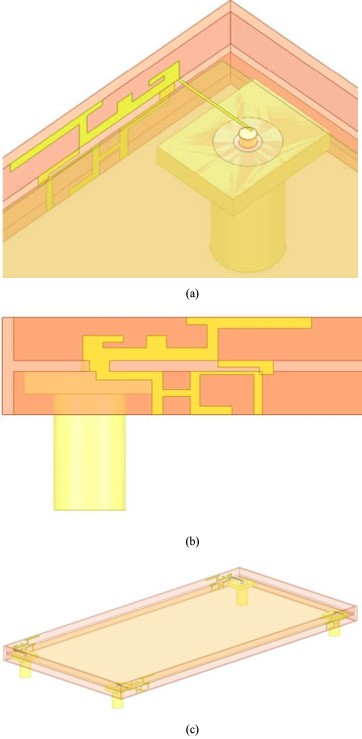

Fig. 2. (a) Antenna on the side frame, (b) Side view of a single antenna element, (c) 3D layout of the four antenna elements showing with the complete substrate.
